2+2 Raised Rail-Panel Bits

Grizzly H5559 Straight Plywood 3 pc. Set 1/2"

Freud 99-515 3-1/2-Inch 2+2 Raised Panel Bit

2+2 Raised Panel Bit - 2+2 RAISED PANEL BIT. Combines 2 small wings that cut downward-. shearing top edge for splinter-free surface. two large wings shear upward for smooth finish SIZE:3-1/2"x5/32" SHANK:1/2"

The Freud Difference
Freud manufactures some of the most innovative, technologically advanced woodworking tools and accessories in the world. To ensure that the highest quality products meet the toughest design standards, Freud owns and operates six manufacturing facilities i is one of the few manufacturers of woodworking tools in the world that produces its own MicroGrain carbide with titanium, called TiCo -- a combination of titanium and cobalt. Freud develops different types of carbide for each application to maximize the cutting life and performance of the tool; and Freud also operates one of the most modern product development research centers in Europe. By overseeing the entire manufacturing process from start to finish, Freud guarantees some of the highest quality, most advanced products in the industry.

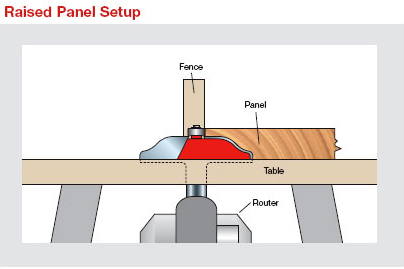

This is how a raised panel bit works with your router.

About Freud's Industrial Bits
Serious woodworkers choose serious accessories. They choose Freud. The Freud name equals quality, precision and craftsmanship. Freud router bits feature TiCo Hi-Density Carbide for maximum cutting life and are individually balanced; providing a cut above the rest. When you're looking for a serious router bit, look for Freud red.

About this Raised Panel Bit
The Freud 3-1/2-inch 2+2 raised panel bit produces raised panels that are as smooth as glass. Even on cross grain, this bit never has the problem of bothersome fine splinters at the top of the profile edge. This design combines two small wings that cut downward to shear the top edge for a splinter-free surface, and two large wings that shear upward for a smooth finish.

Key Tech Specs:

• 3-1/2-inch overall diameter
• 1/2-inch bearing diameter
• 5/8-inch carbide height
• 2-1/2-inch overall length

Applications
Ideal for creating decorative tops, plaques and molding, and made for use on table-mounted portable routers, this bit cuts all composition materials, plywood, hardwood and soft wood.

Warranty
These bits are covered by Freud's limited lifetime warranty.

Freud 99-513 2+2 Raised Panel Bit

2 3/4" Raised Panel Bit, Ogee Profile, 1/2 Shank, TiCo&tm. High Density Carbide.

Freud 99-510 2+2 Raised Panel Bit

Application: Ideal for creating raised panels for doors and paneling, as well as decorative tops, plaques and molding.

Available in two carbide heights:
Use 1/2" height for 5/8" stock. Use 5/8" height for 3/4" stock.
Cuts all composition materials, plywoods, hardwoods, and softwoods. Use on table-mounted portable routers.

Freud's Quadra-Cut Router Bits Feature an Exclusive 4 Cutter Design!
For the cleanest finish for routing the edges of hard or soft wood, woodworkers can look to Freud's new Quadra-Cut router bits. These unique, patented bits employ four cutting edges, versus the industry standard of two, for a flawless finish on the most delicate of materials.

Two of the carbide cutters have an upshear angle to remove most of the stock. Then the pair of downshear cutters make a final cut to produce an ultra clean edge.

Industry standard bits that only have two cutters can leave fuzz and splinters on the top surface, especially in cross grain cuts, but Freud's new Quadra-Cut bits leave a surface that requires no sanding or rework.

Freud 99-520 3-1/2-Inch Raised Panel Bit

3-1/2" Raised Panel Bit, Ogee, 1/2 Shank, TiCo&tm. High Density Carbide.

Freud 99-511 2+2 Raised Panel Bit

Revolutionary design combines two small wings that cut downward to shear the top edge for a splinter-free surface, and two large wings that shear upward for a smooth finish.Produces raised panels for doors and paneling.Use 1/2" height for 5/8" stock. Use 5/8" height for 3/4" stock.Ideal for creating decorative tops, plaques and moulding. Application: Cuts all composition materials, plywood, hardwood and soft wood.Use on table-mounted portable routers.

Freud 99-519 3-1/2-Inch Raised Panel Bit

Revolutionary design combines two small wings that cut downward to shear the top edge for a splinter-free surface, and two large wings that shear upward for a smooth finish.Produces raised panels for doors and paneling.Use 1/2" height for 5/8" stock. Use 5/8" height for 3/4" stock.Ideal for creating decorative tops, plaques and moulding. Application: Cuts all composition materials, plywood, hardwood and soft wood.Use on table-mounted portable routers.

Freud 99-516 3-1/2-Inch Raised Panel Bit

From the Manufacturer Freud's exclusive 2+2 raised panel bits produce raised panels that are glass smooth, even on cross grain and never have the bothersome fine splinters at the top of the profile edge. Freud's engineers have set two wings to do the main cutting of the profile, while two others cut the top part of the profile. This leaves none of the fuzz associated with standard three-wing cutters. Overall diameter 3-1/2-inch Bearing diameter 1/2-inch, carbide height 1/2-inch, overall length 2-1/2-inch

Grizzly H5552 Panel Bit 2 pc. Set

Grizzly H5558 Straight Plywood 3 pc. Set 1/4"
